RADAR MADE IN GERMANY-
VISION BEYOND OPTICAL LIMITS.
LinearDynamicRadar
iLDR-C-1D
Compact ±3° | 10m
Midrange ±2° | 50m
Highrange ±1° | >100m
- iLDR-C-1D
- Tab Title
- Tab Title
DATA SHEET
iLDR-C
SENSOR
1D compact dynamic radar
for industrial applications
MEASUREMENT RATE
TRANSMITTING FREQUENCY
122–123 GHz (ITU ISM band – in some countries limited to 122.25–123 GHz)
Max. range: 119–126 GHz (optional with site specific permit)
POWER SUPPLY
37–56 V DC
Ethernet: IEEE 802.3af/at Mode A (phantom power)
Exemplary supported PoE injectors: PLANET IPOE-171-95W, Moxa INJ-24A-T, Trendnet TI-PG541i
DIMENSIONS
Ø50 x 122 mm
WEIGHT
HOUSING
Hazardous Locations (HazLoc)
CERTIFICATE
ZONES / GROUP
EPL (EQUIPMENT PROTECTION LEVEL)
Mb
LinearDynamicRadar
iLDR-C-1D
Compact ±3° | 10m
Midrange ±2° | 50m
Highrange ±1° | >100m
iLDR-C-1D
iLDR-M-1D
iLDR-H-1D

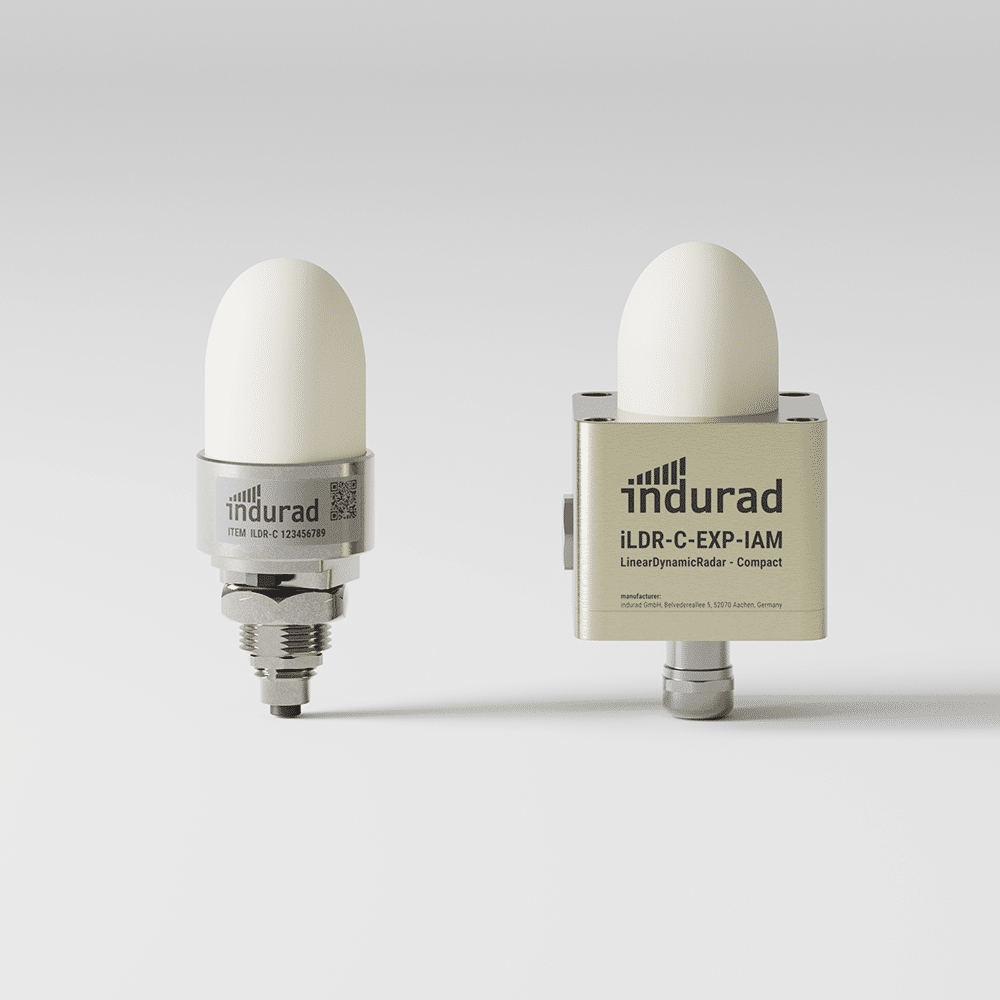

iLDR-C-1D
1D radar for short-range
Product description
Introducing the only short and medium-range 3D radar available on the market. This compact and exceptionally robust radar provides LIDAR-like vision, with a range of up to 160 meters. Proven effective on vehicles and mobile machinery, as well as in high-dust environments.
Application area
Wherever optical systems reach their limits and you need to rely on a complete 3D image of an area, our radar technology excels. Ideal for inspection robots, autonomous machinery, and process control applications.
Applications include:
- Surface scanning
- Robotics
- Navigation
Technical information
DATA SHEET
iSDR-P
SENSOR
3D radar for medium-range industrial applications
MEASUREMENT RATE
Continuous: up to 800 Hz, Burst: up to 1,600 Hz
TRANSMITTING FREQUENCY
76.020–76.980, 77.020–80.930, 71.500–84.000 GHz (on request)
POWER SUPPLY
24 V DC
DIMENSIONS
266 x 150 x 240 mm
WEIGHT
5 kg
HOUSING
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU18ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
Standard Data Output
- Distance
- Angular Information
- Intensity
- Speed (using doppler principle)
- Target (if set up)
Sensor Interfaces:
- Colossus (according to ASRL - Autonomous Space Robotics Lab specification)
- Asterix CAT 240 (EUROCONTROL Specification for Surveillance Data Exchange)
- OPC UA (Open Platform Communications Unified Architecture)
- MQTT (MQ Telemetry Transport protocol for machine-to-machine communication)
- ROS2 (Robotic Operating System Version 2) standards, being downwards compatible to ROS1.
- SDK (Software Development Kit) for direct integration.
Sensor Networks:
- Our sensors are capable to be working in a sensor network together with other sensors of the same kind or mixed with other indurad sensors.
In addition to a direct TCP/IP connection via Gbit Ethernet, our integrated sensor network offers various interfaces (e.g., industrial interfaces like Profibus DP, Modbus TCP, dry contacts) and connection options (Starlink, 4G, 5G, etc.). Having executed projects in diverse industrial environments, from jungles to icy regions, indurad possesses the technology and expertise to provide comprehensive support.
ScanningDynamicRadar
iSDR-2D
Compact ±3° | 10m
Midrange ±2° | 50m
Highrange ±1° | >100m
iSDR-C-2D
iSDR-M-2D
iSDR-H-2D

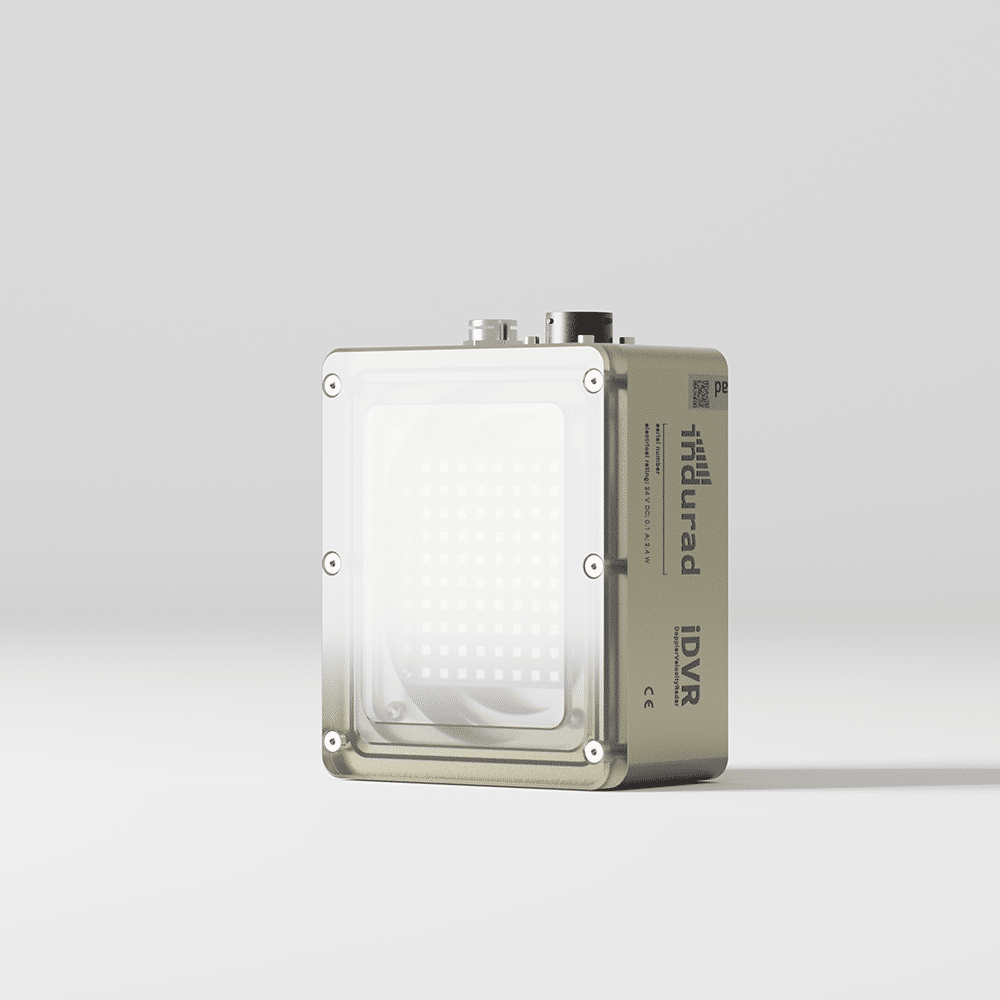

DopplerVelocityRadar
iDVR
Compact ±3° | 10m
Midrange ±2° | 50m
Highrange ±1° | >100m
ScanningDynamicRadar
iSDR-3D
iDVR
iSDR-P-3D

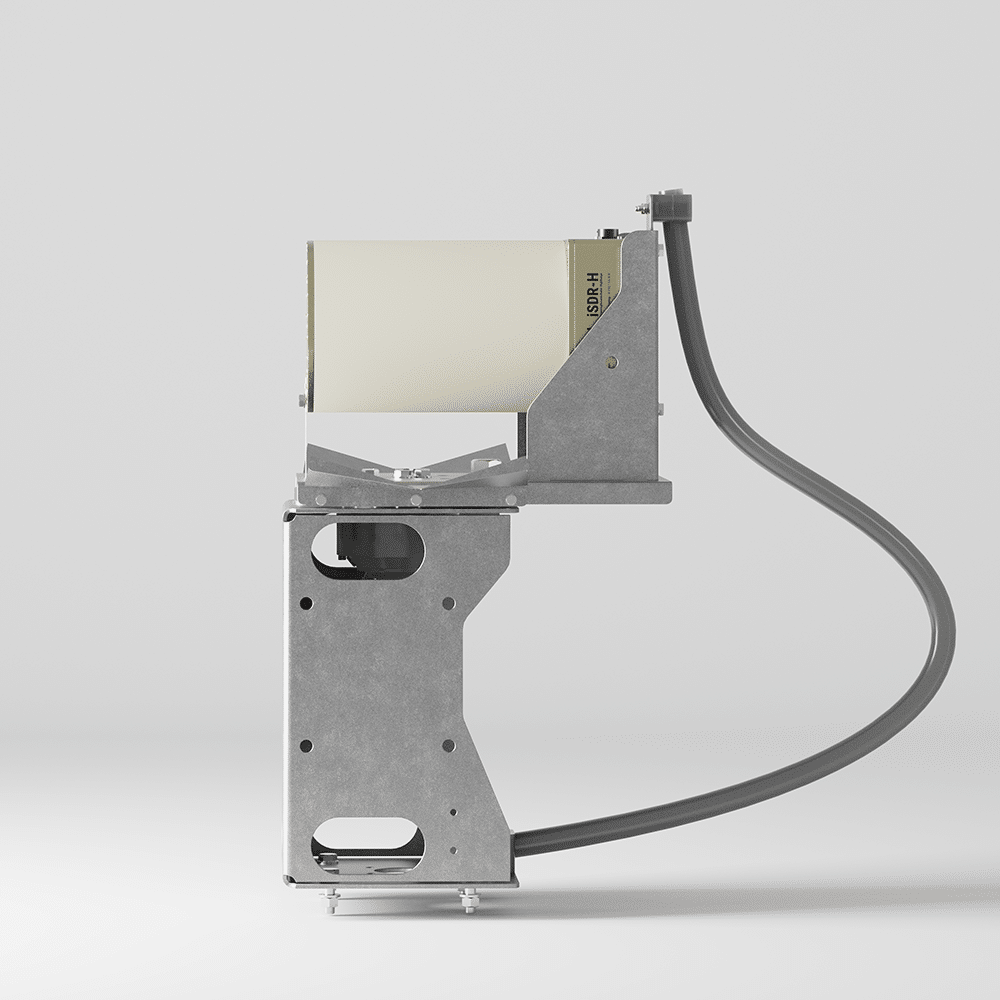

iSDR-H-3D

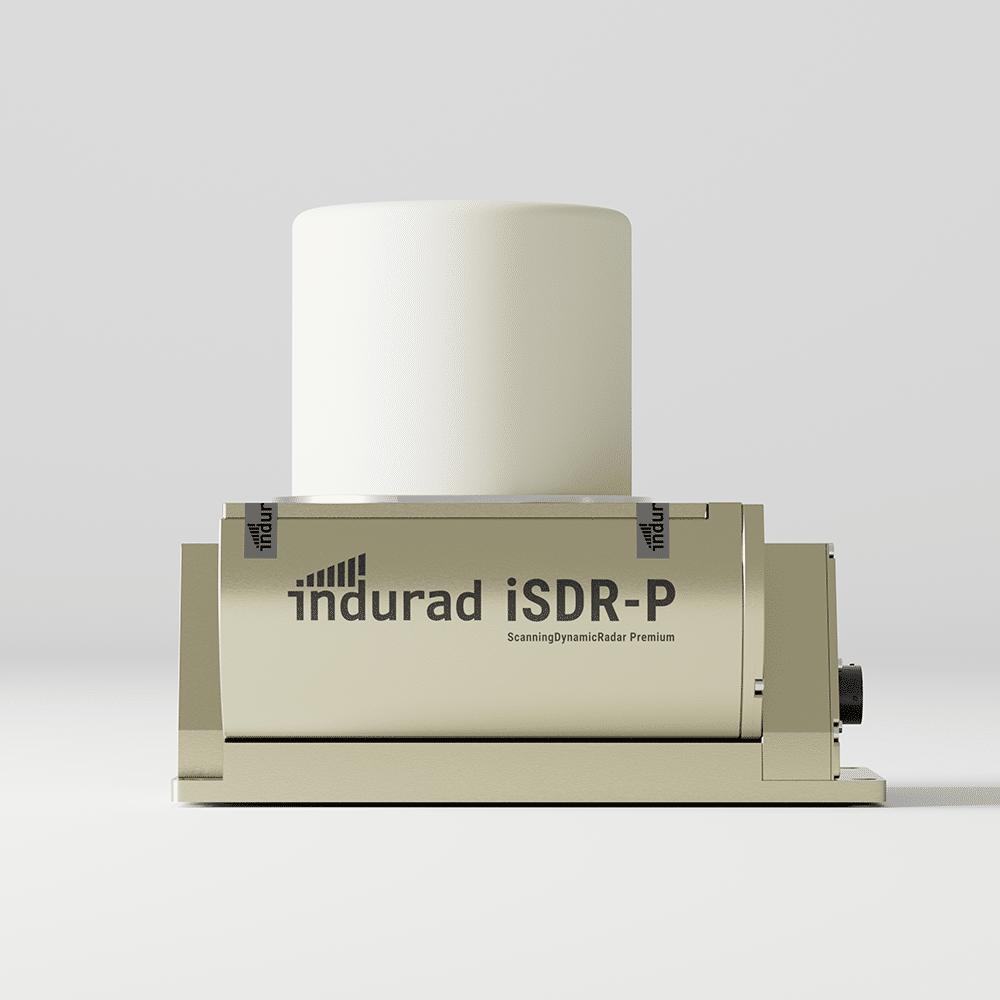

iSDR-P
3D radar for medium-range
Product description
Introducing the only short and medium-range 3D radar available on the market. This compact and exceptionally robust radar provides LIDAR-like vision, with a range of up to 160 meters. Proven effective on vehicles and mobile machinery, as well as in high-dust environments.
Application area
Wherever optical systems reach their limits and you need to rely on a complete 3D image of an area, our radar technology excels. Ideal for inspection robots, autonomous machinery, and process control applications.
Applications include:
- Surface scanning
- Robotics
- Navigation
Technical information
DATA SHEET
iSDR-P
SENSOR
3D radar for medium-range industrial applications
MEASUREMENT RATE
Continuous: up to 800 Hz, Burst: up to 1,600 Hz
TRANSMITTING FREQUENCY
76.020–76.980, 77.020–80.930, 71.500–84.000 GHz (on request)
POWER SUPPLY
24 V DC
DIMENSIONS
266 x 150 x 240 mm
WEIGHT
5 kg
HOUSING
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU18ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
Standard Data Output
- Distance
- Angular Information
- Intensity
- Speed (using doppler principle)
- Target (if set up)
Sensor Interfaces:
- Colossus (according to ASRL - Autonomous Space Robotics Lab specification)
- Asterix CAT 240 (EUROCONTROL Specification for Surveillance Data Exchange)
- OPC UA (Open Platform Communications Unified Architecture)
- MQTT (MQ Telemetry Transport protocol for machine-to-machine communication)
- ROS2 (Robotic Operating System Version 2) standards, being downwards compatible to ROS1.
- SDK (Software Development Kit) for direct integration.
Sensor Networks:
- Our sensors are capable to be working in a sensor network together with other sensors of the same kind or mixed with other indurad sensors.
In addition to a direct TCP/IP connection via Gbit Ethernet, our integrated sensor network offers various interfaces (e.g., industrial interfaces like Profibus DP, Modbus TCP, dry contacts) and connection options (Starlink, 4G, 5G, etc.). Having executed projects in diverse industrial environments, from jungles to icy regions, indurad possesses the technology and expertise to provide comprehensive support.

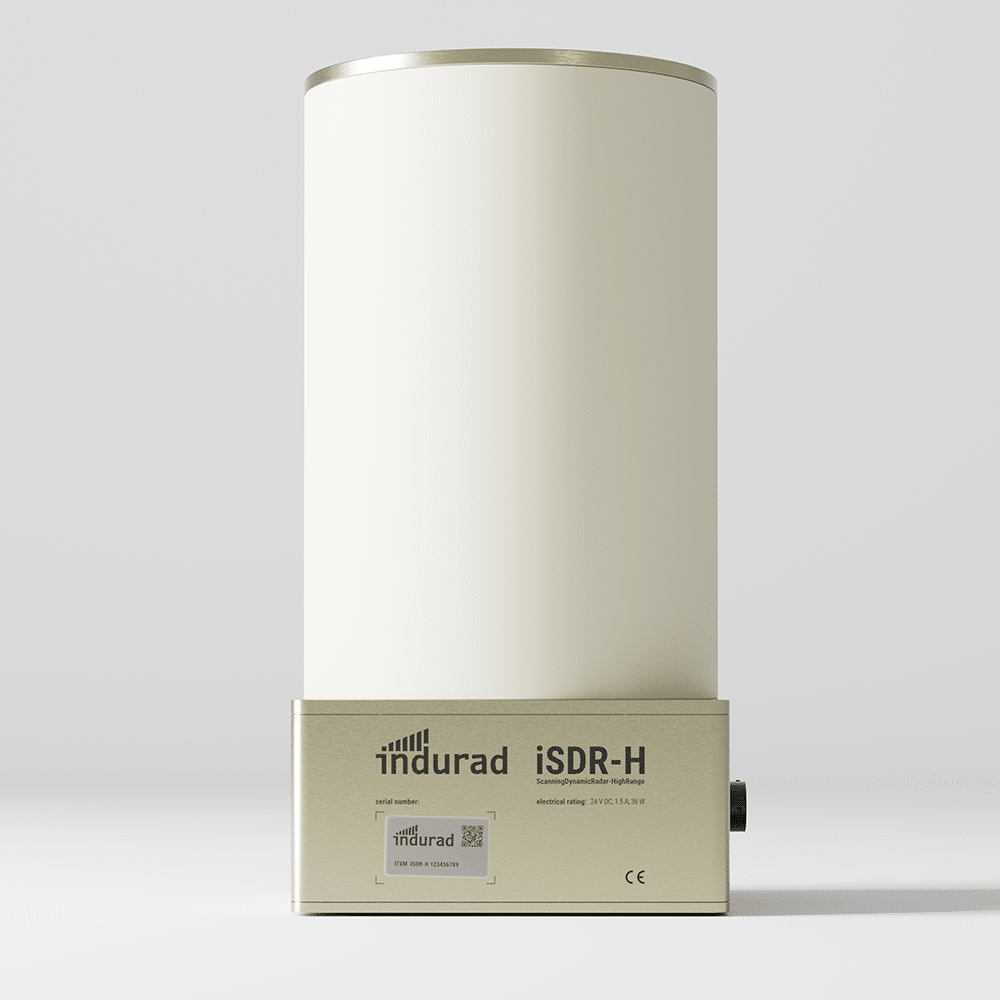

iSDR-H
2D radar for high-range industrial applications
Product description
Introducing our long-range radar sensor, designed with a high-speed update rate and the capability to detect small targets across all ranges. This advanced sensor can measure the speed of objects using the Doppler effect, allowing it to distinguish between moving and stationary objects. It provides high precision in identifying small objects, making it an ideal solution for various applications requiring accurate and reliable detection.
Application area
Introducing our advanced radar solutions for collision avoidance, obstacle detection, and navigation in autonomous vehicles and vessels. Our technology enhances seaway protection and intruder detection, ensuring comprehensive safety and operational efficiency.
Applications include:
- Collision Avoidance
- Obstacle Detection
- Perimeter Safety
- Wide Area Surveillance
- Runway Incursion Prevention
- Traffic Flow Detection
- Tunnel Safety
- Navigation in GNSS Restricted Environments
- Profile Monitoring
Our radar solutions provide the reliability and precision needed for a wide range of safety and monitoring applications.
Technical information
DATA SHEET
iSDR-H
SENSOR
MEASUREMENT RATE
Up to 12,000 Hz
TRANSMITTING FREQUENCY
76.020–76.980, 77.020–80.930, 71.500–83.500 GHz (on request)
POWER SUPPLY
24 V DC
DIMENSIONS
187 x 187 x 367 mm
WEIGHT
8.1 kg
HOUSING
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU18ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
Standard Data Output
- Distance
- Angular Information
- Intensity
- Speed (using doppler principle)
- Target (if set up)
Sensor Interfaces:
- Colossus (according to ASRL - Autonomous Space Robotics Lab specification)
- Asterix CAT 240 (EUROCONTROL Specification for Surveillance Data Exchange)
- OPC UA (Open Platform Communications Unified Architecture)
- MQTT (MQ Telemetry Transport protocol for machine-to-machine communication)
- ROS2 (Robotic Operating System Version 2) standards, being downwards compatible to ROS1.
- SDK (Software Development Kit) for direct integration.
Sensor Networks:
- Our sensors are capable to be working in a sensor network together with other sensors of the same kind or mixed with other indurad sensors.
In addition to a direct TCP/IP connection via Gbit Ethernet, our integrated sensor network offers various interfaces (e.g., industrial interfaces like Profibus DP, Modbus TCP, dry contacts) and connection options (Starlink, 4G, 5G, etc.). Having executed projects in diverse industrial environments, from jungles to icy regions, indurad possesses the technology and expertise to provide comprehensive support.

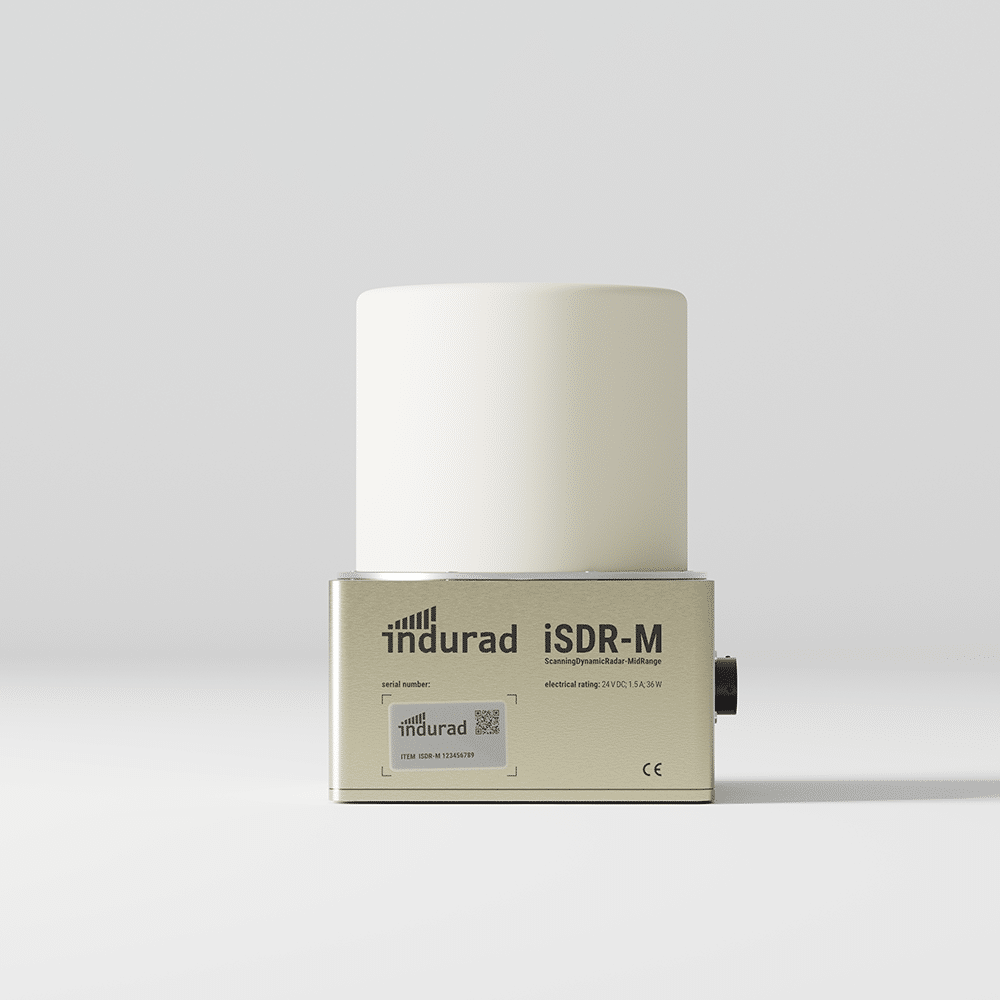

iSDR-M
2D radar for medium-range industrial applications
Product description
Introducing our medium-range sensor, designed with ultra-high precision and detection speed. This sensor enables onboard processing of vast amounts of data, offering high flexibility for various applications where ranges do not exceed 160 meters. Its advanced capabilities make it an ideal choice for scenarios requiring reliable and accurate medium-range detection.
Application area
Introducing our advanced radar solutions designed for inspection robots and rail-bound equipment, providing collision avoidance systems (CAS) and distance control. These solutions enhance safety at intersections and tunnels, ensuring precise and reliable operations.
Applications include:
- Collision Avoidance
- Autonomous Navigation
- Surface Contour Scans with Highest Precision
Our radar technology offers exceptional precision and reliability, making it ideal for a wide range of safety and monitoring applications.
Technical information
DATA SHEET
iSDR-M
SENSOR
MEASUREMENT RATE
Up to 12,000 Hz
TRANSMITTING FREQUENCY
76.020–76.980, 77.020–80.930, 71.500–83.500 GHz (on request)
POWER SUPPLY
12 – 24 V DC
DIMENSIONS
WEIGHT
4.3 kg
HOUSING
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU18ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
Standard Data Output
- Distance
- Angular Information
- Intensity
- Speed (using doppler principle)
- Target (if set up)
Sensor Interfaces:
- Colossus (according to ASRL - Autonomous Space Robotics Lab specification)
- Asterix CAT 240 (EUROCONTROL Specification for Surveillance Data Exchange)
- OPC UA (Open Platform Communications Unified Architecture)
- MQTT (MQ Telemetry Transport protocol for machine-to-machine communication)
- ROS2 (Robotic Operating System Version 2) standards, being downwards compatible to ROS1.
- SDK (Software Development Kit) for direct integration.
Sensor Networks:
- Our sensors are capable to be working in a sensor network together with other sensors of the same kind or mixed with other indurad sensors.
In addition to a direct TCP/IP connection via Gbit Ethernet, our integrated sensor network offers various interfaces (e.g., industrial interfaces like Profibus DP, Modbus TCP, dry contacts) and connection options (Starlink, 4G, 5G, etc.). Having executed projects in diverse industrial environments, from jungles to icy regions, indurad possesses the technology and expertise to provide comprehensive support.

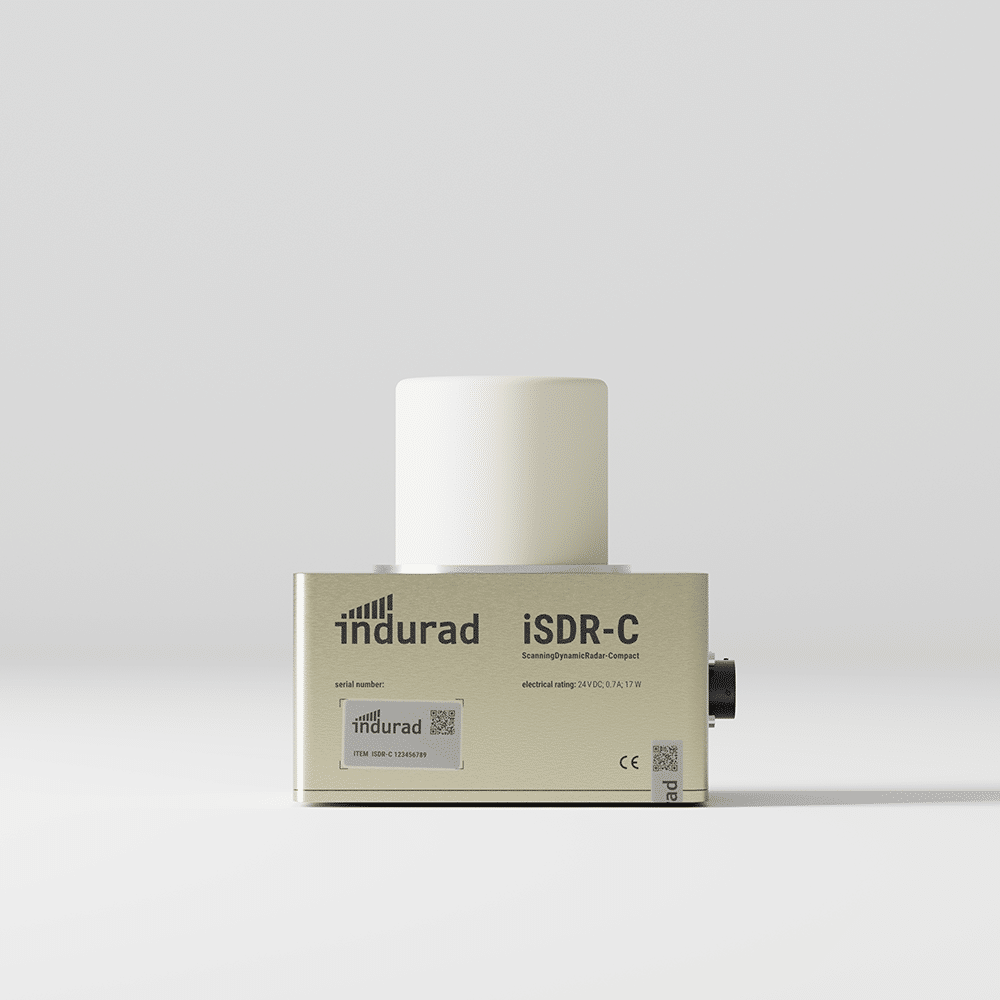

iSDR-C
2D radar for short-range industrial applications
Product description
Introducing our cost-effective short-range radar, designed to detect objects and surfaces with a wide beam that ensures coverage in a broad azimuth direction. With a range of up to 50 meters, this radar is perfect for surface scanning and simple collision avoidance projects, providing reliable and accurate detection at an affordable price.
Application area
Introducing our state-of-the-art radar solutions for autonomous vehicles and vessels, as well as industrial outdoor automation. Our technology enhances safety and efficiency in various applications.
Applications include:
- Autonomous Vehicles
- Vehicle Collision Avoidance
- Vessel Docking and Quay Approach
- Bulk Handling Processes
Our radar systems provide the reliability and precision required for seamless operation in diverse environments.
Technical information
DATA SHEET
iSDR-C
SENSOR
MEASUREMENT RATE
Continuous: up to 800 Hz, Burst: up to 1,600 Hz
TRANSMITTING FREQUENCY
POWER SUPPLY
24 V DC
DIMENSIONS
155 x 100 x 159 mm
WEIGHT
3 kg
HOUSING
Anodized aluminium
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU 18 ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
Standard Data Output
- Distance
- Angular Information
- Intensity
- Speed (using doppler principle)
- Target (if set up)
Sensor Interfaces:
- Colossus (according to ASRL - Autonomous Space Robotics Lab specification)
- Asterix CAT 240 (EUROCONTROL Specification for Surveillance Data Exchange)
- OPC UA (Open Platform Communications Unified Architecture)
- MQTT (MQ Telemetry Transport protocol for machine-to-machine communication)
- ROS2 (Robotic Operating System Version 2) standards, being downwards compatible to ROS1.
- SDK (Software Development Kit) for direct integration.
Sensor Networks:
- Our sensors are capable to be working in a sensor network together with other sensors of the same kind or mixed with other indurad sensors.
In addition to a direct TCP/IP connection via Gbit Ethernet, our integrated sensor network offers various interfaces (e.g., industrial interfaces like Profibus DP, Modbus TCP, dry contacts) and connection options (Starlink, 4G, 5G, etc.). Having executed projects in diverse industrial environments, from jungles to icy regions, indurad possesses the technology and expertise to provide comprehensive support.
100% PERFORMANCE - 0% MAINTENANCE.
100% PERFORMANCE - 0% MAINTENANCE.
MADE FOR HARSH CONDITIONS.
MADE FOR HARSH CONDITIONS.
- iSDR-P
- iSDR-H
- iSDR-M
- iSDR-C
DATA SHEET
iSDR-P
SENSOR
3D radar for medium-range industrial applications
MEASUREMENT RATE
Continuous: up to 800 Hz, Burst: up to 1,600 Hz
TRANSMITTING FREQUENCY
76.020–76.980, 77.020–80.930, 71.500–84.000 GHz (on request)
POWER SUPPLY
24 V DC
DIMENSIONS
266 x 150 x 240 mm
WEIGHT
5 kg
HOUSING
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU18ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
DATA SHEET
iSDR-H
SENSOR
MEASUREMENT RATE
Up to 12,000 Hz
TRANSMITTING FREQUENCY
76.020–76.980, 77.020–80.930, 71.500–83.500 GHz (on request)
POWER SUPPLY
24 V DC
DIMENSIONS
187 x 187 x 367 mm
WEIGHT
8.1 kg
HOUSING
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU18ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
DATA SHEET
iSDR-M
SENSOR
MEASUREMENT RATE
Up to 12,000 Hz
TRANSMITTING FREQUENCY
76.020–76.980, 77.020–80.930, 71.500–83.500 GHz (on request)
POWER SUPPLY
12 – 24 V DC
DIMENSIONS
WEIGHT
4.3 kg
HOUSING
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU18ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
DATA SHEET
iSDR-C
SENSOR
MEASUREMENT RATE
Continuous: up to 800 Hz, Burst: up to 1,600 Hz
TRANSMITTING FREQUENCY
POWER SUPPLY
24 V DC
DIMENSIONS
155 x 100 x 159 mm
WEIGHT
3 kg
HOUSING
Anodized aluminium
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU 18 ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
- iSDR-P
- iSDR-H
- iSDR-M
- iSDR-C
DATA SHEET
iSDR-P
SENSOR
3D radar for medium-range industrial applications
MEASUREMENT RATE
Continuous: up to 800 Hz, Burst: up to 1,600 Hz
TRANSMITTING FREQUENCY
76.020–76.980, 77.020–80.930, 71.500–84.000 GHz (on request)
POWER SUPPLY
24 V DC
DIMENSIONS
266 x 150 x 240 mm
WEIGHT
5 kg
HOUSING
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU18ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
DATA SHEET
iSDR-H
SENSOR
MEASUREMENT RATE
Up to 12,000 Hz
TRANSMITTING FREQUENCY
76.020–76.980, 77.020–80.930, 71.500–83.500 GHz (on request)
POWER SUPPLY
24 V DC
DIMENSIONS
187 x 187 x 367 mm
WEIGHT
8.1 kg
HOUSING
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU18ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
DATA SHEET
iSDR-M
SENSOR
MEASUREMENT RATE
Up to 12,000 Hz
TRANSMITTING FREQUENCY
76.020–76.980, 77.020–80.930, 71.500–83.500 GHz (on request)
POWER SUPPLY
12 – 24 V DC
DIMENSIONS
WEIGHT
4.3 kg
HOUSING
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU18ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
DATA SHEET
iSDR-C
SENSOR
MEASUREMENT RATE
Continuous: up to 800 Hz, Burst: up to 1,600 Hz
TRANSMITTING FREQUENCY
POWER SUPPLY
24 V DC
DIMENSIONS
155 x 100 x 159 mm
WEIGHT
3 kg
HOUSING
Anodized aluminium
Hazardous Locations (HazLoc)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU 18 ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
INDURAD – INDUSTRIAL RADAR
Back in 2008, we invented the first 2D radar for industrial applications, the iconic iDRR (indurad DualRangeRadar). Since then, our design and manufacturing capabilities have continued to evolve – as have our sensors. Today, we are proud to offer a complete portfolio of unique radar sensors that help our customers achieve their productivity and sustainability goals every day, in all environmental conditions.
On the left-hand side, the illustration demonstrates the propagation of a radar wave around a dust particle measuring 3mm in diameter. This phenomenon exemplifies the radar’s efficacy as a covert mechanism for penetrating and visualizing through challenging environmental conditions such as dust, fog, snow, and steam.
Our extensive product portfolio is further enhanced by the inclusion of RTLS (Real-Time Location System) sensors, GNSS (Global Navigation Satellite System) sensors, and processing units.
While the majority of our sensors find primary applications within our own systems, we extend our services to original equipment manufacturers (OEMs) by providing ROS2 interface options.
