3D RADAR SENSOR

unbeatable precision in harsh industrial conditions

The 3D radar scanners evolved out of our 2D radar sensors. They are now available in the 5th generation – being ultra robust in the harshest conditions. Also in extremely dusty environments they work since years in most cases without any maintenance.

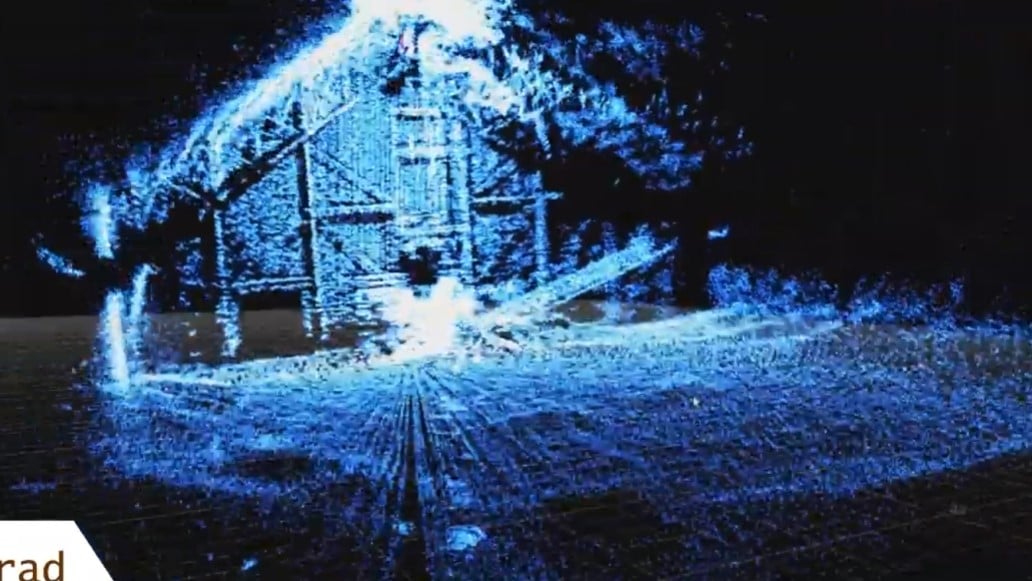

The sensors provide lidar like measurement results and precision – at nearly all environmental conditions.



These sensors are made for harsh conditions.

1600 Hz

measurement rate

up to

400

m

measurement range

iSDR-3D SENSOR TYPES

  • iSDR-P

DATA SHEET

iSDR-P

SENSOR

3D radar for medium-range industrial applications

MEASUREMENT RATE

Continuous: up to 800 Hz, Burst: up to 1,600 Hz

TRANSMITTING FREQUENCY

76.020–76.980, 77.020–80.930, 71.500–84.000 GHz (on request)

POWER SUPPLY

24 V DC

DIMENSIONS

266 x 150 x 240 mm

WEIGHT

5 kg

HOUSING
Anodized aluminium

Hazardous Locations (HazLoc)

CERTIFICATE

Dust (standard housing):

IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):

IECEx IBE 19.0009X, IBExU18ATEX1120X-0,

ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21

ZONES / GROUP

Dust (standard housing): 20, 21
Underground Mining (flameproof housing): – (M2)

EPL (EQUIPMENT PROTECTION LEVEL)

Dust (standard housing): Da, Db

Underground Mining (flameproof housing): Mb

DATA SHEET

iSDR-H-3D

SENSOR

3D radar for high-range industrial applications

MEASUREMENT RATE

Up to 12,000 Hz

TRANSMITTING FREQUENCY

76.020–76.980 GHz, 77.020–80.930 GHz, 71.500–83.500 GHz (on request)

POWER SUPPLY

Rotary drive: 48 V DC, iSDR-H + Rotary drive control: 24 V DC

DIMENSIONS

540 x 450 x 694 mm

WEIGHT

37 kg

HOUSING

Anodized aluminium
