iLDR was originally developed as single-point high focus and high range positioning sensor for automating shotcrete machines. With its high measurement rate of 12,000 Hz, it is able to detect objects at a distance of up to 1000 m. By now, five iLDR variants are available that enable different applications from the original position measurements to various applications in steel production.

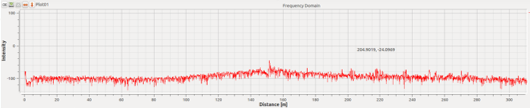

This sensor is made for harsh conditions.
12 kHz
measurement rate
up to
1000
m
object detection
iLDR SENSOR TYPES
- iLDR-C
- iLDR-M-DN050
- iLDR-M-DN080
- iLDR-M-DN100
- iLDR-H-DN150
DATA SHEET
iLDR-C
SENSOR
1D compact dynamic radar
for industrial applications
MEASUREMENT RATE
TRANSMITTING FREQUENCY
122–123 GHz (ITU ISM band – in some countries limited to 122.25–123 GHz)
Max. range: 119–126 GHz (optional with site specific permit)
POWER SUPPLY
37–56 V DC
Ethernet: IEEE 802.3af/at Mode A (phantom power)
Exemplary supported PoE injectors: PLANET IPOE-171-95W, Moxa INJ-24A-T, Trendnet TI-PG541i
DIMENSIONS
Ø50 x 122 mm
WEIGHT
HOUSING
Anodized aluminium
INERTIAL SENSOR
Derived features
- Plant health monitoring
- Orientation validation
Specification
- Gyroscope sensitivity error: ±1%
- Gyroscope noise: ±4 mdps/√Hz
- Accelerometer noise: 100 µg/√Hz
- ±2000 dps integrated 16-bit ADCs
- Acceleration limit ±16g
- Industrial Range: -40°C to +85°C
Hazardous Locations (HazLoc)
CERTIFICATE
ZONES / GROUP
EPL (EQUIPMENT PROTECTION LEVEL)
Mb
DATA SHEET
iLDR-M-DN050
SENSOR
MEASUREMENT RATE
Up to 12,000 Hz
TRANSMITTING FREQUENCY
76.020–76.980 GHz
77.020–80.930 GHz
71.500–84.000 GHz (on request)
POWER SUPPLY
DIMENSIONS
100 x 100 x 180 mm
WEIGHT
HOUSING
Hazardous Locations (HazLoc) - only iLDR-H-DN050 (V3)
CERTIFICATE
Dust (standard housing):
IECEx LC 20.0004X, ExNB 21 ATEX 0001 X
Underground Mining (flameproof housing):
IECEx IBE 19.0009X, IBExU18ATEX1120X-0,
ANZEx 20.3001X-0, RU C-DE.AA87.B.00868/21
ZONES / GROUP
Dust (standard housing): 20. 21
Underground Mining (flameproof housing): – (M2)
EPL (EQUIPMENT PROTECTION LEVEL)
Dust (standard housing): Da, Db
Underground Mining (flameproof housing): Mb
DATA SHEET
iLDR-M-DN080
SENSOR
MEASUREMENT RATE
Up to 12,000 Hz
TRANSMITTING FREQUENCY
76.020–76.980 GHz
77.020–80.930 GHz
71.500–84.000 GHz (on request)
POWER SUPPLY
DIMENSIONS
100 x 100 x 220 mm
WEIGHT
2.3 kg
HOUSING
Hazardous Locations (HazLoc) - only iLDR-H-DN080 (V3)
CERTIFICATE
ZONES / GROUP
EPL (EQUIPMENT PROTECTION LEVEL)
DATA SHEET
iLDR-M-DN100
SENSOR
MEASUREMENT RATE
Up to 12,000 Hz
TRANSMITTING FREQUENCY
76.020–76.980 GHz
77.020–80.930 GHz
71.500–84.000 GHz (on request)
POWER SUPPLY
DIMENSIONS
100 x 100 x 245 mm
WEIGHT
3.3 kg
HOUSING
INERTIAL SENSOR
Derived features
- Plant health monitoring
- Orientation validation
Specification
- Gyroscope sensitivity error: ±1%
- Gyroscope noise: ±4 mdps/√Hz
- Accelerometer noise: 100 µg/√Hz
- ±2000 dps integrated 16-bit ADCs
- Acceleration limit ±16g
- Industrial Range: -40°C to +85°C
Hazardous Locations (HazLoc) - only iLDR-H-DN100 (V3)
CERTIFICATE
ZONES / GROUP
EPL (EQUIPMENT PROTECTION LEVEL)
DATA SHEET
iLDR-H-DN150
SENSOR
MEASUREMENT RATE
Continuous: up to 800 Hz, Burst: up to 1,600 Hz
TRANSMITTING FREQUENCY
76.020–76.980 GHz
77.020–80.930 GHz
71.500–84.000 GHz (on request)
POWER SUPPLY
DIMENSIONS
180 x 185 x 360 mm
WEIGHT
8.5 kg
